Главная> Каталог> EZMO-Пассажирский электрический трайк> Электрический трайк JINGANG H1> Мини-электрический четырехколесный автомобиль

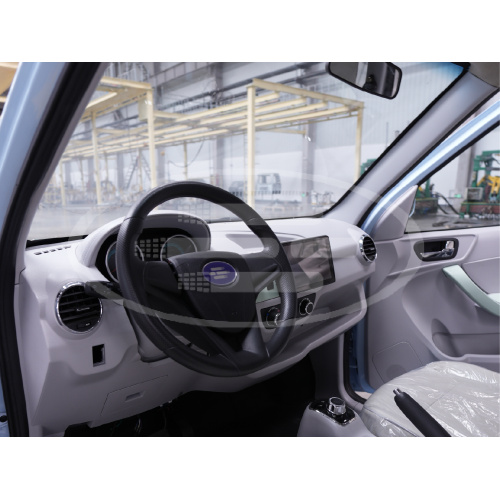

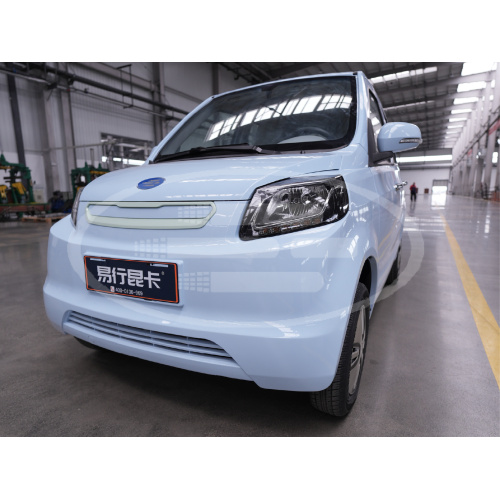

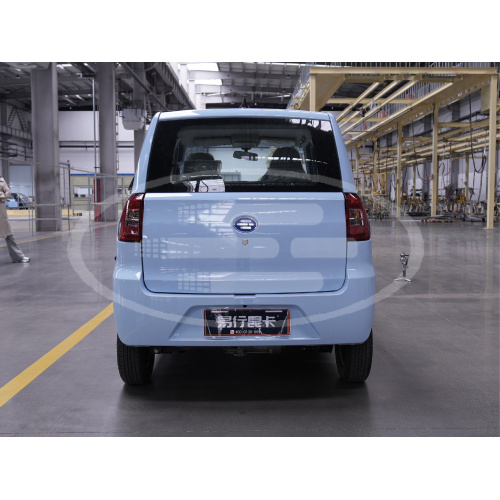

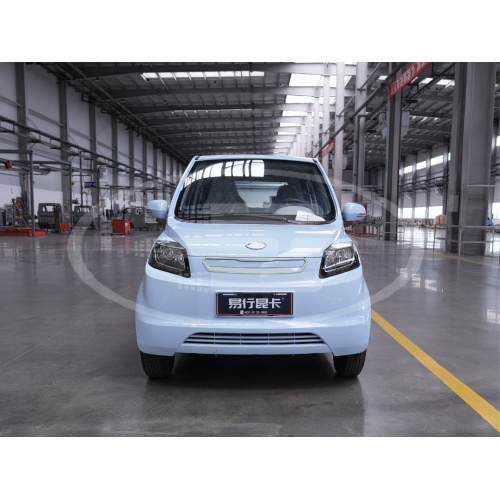

Мини-электрический четырехколесный автомобиль
Мини-электрический четырехколесный автомобиль
Мини-электрический четырехколесный автомобиль
Мини-электрический четырехколесный автомобиль
Мини-электрический четырехколесный автомобиль

Мини-электрический четырехколесный автомобиль

  • Вид оплаты: T/T
  • Инкотермс: FOB
  • Количество минимального заказа: 1 Piece/Pieces
  • транспорт: Ocean
Свяжитесь с нами
Получить цену
    PRODUCT ATTRIBUTES
    Overview
    Атрибуты продукта

    Модель: JINGANG-H1

    марка: Цзинган

    Origin: КИТАЙ

    Overview
    Возможности поставки и дополнительная информация

    транспорт: Ocean

    Место происхождения: КИТАЙ

    Вид оплаты: T/T

    Инкотермс: FOB

    Упаковка и доставка
    Продажа единиц жилья: Piece/Pieces
    Описание продукта
    project Parameter Item H1Standard Model H1Luxury Model
    Vehicle dimensions and weight Length × Width × Height (mm) 3210×1480×1545 3210×1480×1545
    wheel base (mm) 2140 2140
    tread (mm) 1220/1210 1220/1210
    curb weight （kg） 525 525
    Electromechanical Power Parameters motor rated output power (kW) 4 6
    Maximum output torque of the motor (N·m) 60 75
    Motor Type Permanent Magnet Synchronous Permanent Magnet Synchronous
    Battery Type lithium iron phosphate lithium iron phosphate
    Battery capacity 1 1
    system voltage V 72V 72V
    quantity of electricity kWh 7.2 9
    Charger model 7215 72-25
    Charging and heating auxiliary device -- --
    drive system, transmission agent  Driving Method rear-wheel drive  rear-wheel drive
    Single-span bridge (speed ratio 10:1) ● ●
    Driving/Steering System Suspension system (front/rear) McFerson independent suspension / Five-link non-independent suspension McFerson independent suspension / Five-link non-independent suspension
    steering system  Gear-rack steering system Gear-rack steering system
    tyre size  145/70 R12 155/70 R12
    brake assembly,brake system,braking system,retrosystem  brake assembly,brake system,braking system,retrosystem  Front disc and rear drum hydraulic dual-circuit braking system Front disc and rear drum hydraulic dual-circuit braking system
    Vehicle Performance Parameters Minimum ground clearance (mm) 180 180
    Minimum turning diameter (m) 8 8
    Maximum speed (km/h) (displayed) 45 45
    Isokinetic range (km) (Economy/Sport) 130/115 130/115
    Maximum gradient of a single-span bridge 20% 20%
    Operation Configuration vacuum booster  ● ●
    power-assisted steering
    Economic/Sports Dual Mode
    seat  Simulated leather seat ○
    The driver's seat features four-way manual adjustment. ●
    The passenger seat features four-way manual adjustment.
    The rear seats are foldable.
    interior collocation  Multimedia (with USB port)
    2 speakers
    reading lights
    back up power,back-up power
    Manual anti-glare interior rearview mirror
    Front door electric glass lift
    Chromium-plated door inner handle ○ ○
    External Configuration Rearview camera ● ●
    LED transparent halogen integrated front headlight assembly
    LED rear combination tail lights
    Aluminum wheel ○
    air-conditioning, air conditioner warm air blower ○
    Safety Equipment Front three-point seat belt ● ●
    Backdoor child safety lock
    Remote control for the central door lock
    Emergency rescue toolkit (vehicle-mounted tool)
    High-level brake light
    pigment, dyestuff
    remarks, comments on a form, remark  "●" indicates standard equipment, "○" indicates optional equipment, and "--" indicates unavailable equipment.
    default namedefault namedefault name

    The file is encrypted. Please fill in the following information to continue accessing it

    Попросите пароль
    Связаться
    If you have any questions our products or services,feel free to reach out to us.Provide unique experiences for everyone involved with a brand. We've got preferential price and best-quality products for you.
    Please fill in the information
    Please fill in your e-mail
    Please fill in the content
    Горячие продукты

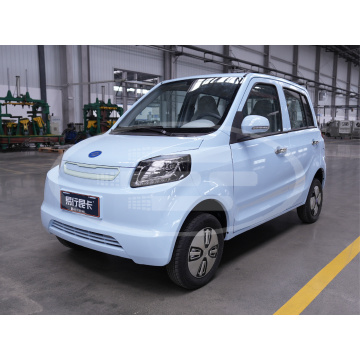

    Электрический мини-четырехколесный автомобиль
